The ISO 80369-7 Luer Standard and How It Affects Plastic Luer Users

WHITE PAPER BY DAVE SPLETT, VP OF BUSINESS DEVELOPMENT

The ISO 80369 series reduces the risk of misconnections by assigning application-specific connector geometries. Luer connectors remain the standard interface for intravascular and hypodermic applications under ISO 80369-7. The 2021 edition replaced the 2016 edition and changed several requirements, including making the thread-start "t" dimension auxiliary - reference only. Injectech continues to control that dimension and confirms it through independent CTmeasurement.

What Changed In The 2021 Edition

1) Tolerances increased - Several reference connector dimensions received increased tolerance. Most affected features do not contact the test connector; the bearing-side thread angle does, with minimal to no expected effect on outcomes.

2) Semi-rigid and rigid separated - Some requirements are now specified by material type, with definitions added for semi-rigid and rigid materials.

3) T dimension made auxiliary -The thread-start distance became reference only because of measurement difficulty. Functional impact is evaluated with the resistance-to-separation test under axial load.

4) N1 and N2 dimensions changed - Female luer lock variant A dimensions changed to allow measurement from the open end of the connector.

The benefit of dimensional compliance

Under ISO 594, thread-start location could vary between manufacturers. A thread beginning too far back may allow taper engagement while compromising the lock; an overly aggressive thread can interfere with sealing and contribute to over-rotation. ISO 80369-7 reduces this ambiguity by controlling geometry and performance together.

The"T" dimension

Our solution

Injectech did not reverse the tooling work performed when the t-dimension requirement was relaxed. We continue to control the thread-start position on our ISO 80369-7 luers and confirm it through independent CT measurement, reducing uncertainty and variability when specifying components in tube sets and manifolds.

Compatibility - What mates with what

Injectech did not reverse the tooling work performed when the t-dimension requirement was relaxed. We continue to control the thread-start position on our ISO 80369-7 luers and confirm it through independent CT measurement, reducing uncertainty and variability when specifying components in tube sets and manifolds.

Regulatory status

FDA recognizes ISO 80369-7:2021 under Recognition Number 5-133, with the extent of recognition listed as the complete standard. For any submission, verify current status directly in the FDA recognized consensus standards database.

Three questions worth asking a supplier

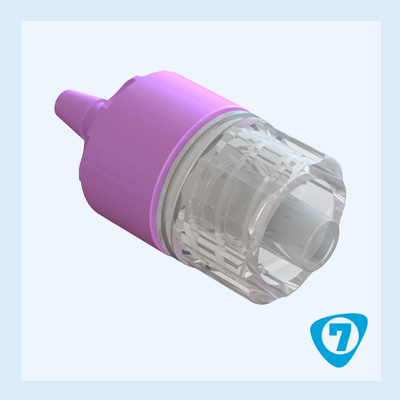

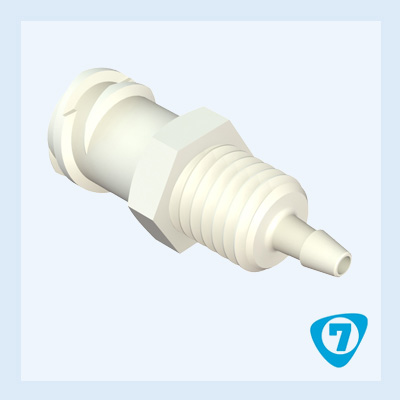

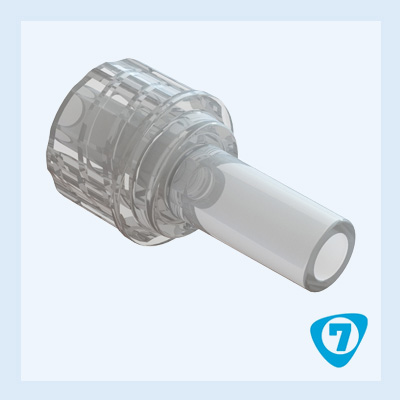

Representative ISO 80369-7 products

Five product types to ISO 80369-7

How we verify

Injectech ISO 80369-7 products comply with both ISO 80369-7:2016 and ISO 80369-7:2021. Luers are tested by accredited independent laboratories certified to ISO 17025, and the t-dimension position is confirmed by third-party CT scanning. A validation document is available on request

Finding the parts

Filter by ISO 80369-7 on the Injectech All Products page to see the conforming range. Part-number prefixes vary by product family, so filtering is more reliable than searching a code. Conforming fittings are marked with the blue 7 symbol in the catalog.

Samples and custom requirements

Samples are free. Choose the part numbers, provide a shipping address, and they ship. Where a design needs an interface the catalog does not cover, Injectech can evaluate whether it is a catalog part, a slight tooling modification, or a new tooling requirement.

Materials and manufacturing

Products are molded in medical-grade resins including clear acrylic, polycarbonate, radiation-stable polycarbonate, lipid-resistant radiation-stable polycarbonate, Tritan™ copolyester,

animal derivative-free polypropylene, Kynar® PVDF, nylon and ABS. Parts are molded, assembled and packaged inside an ISO Class 8 cleanroom under an ISO 13485 certified quality management system.
