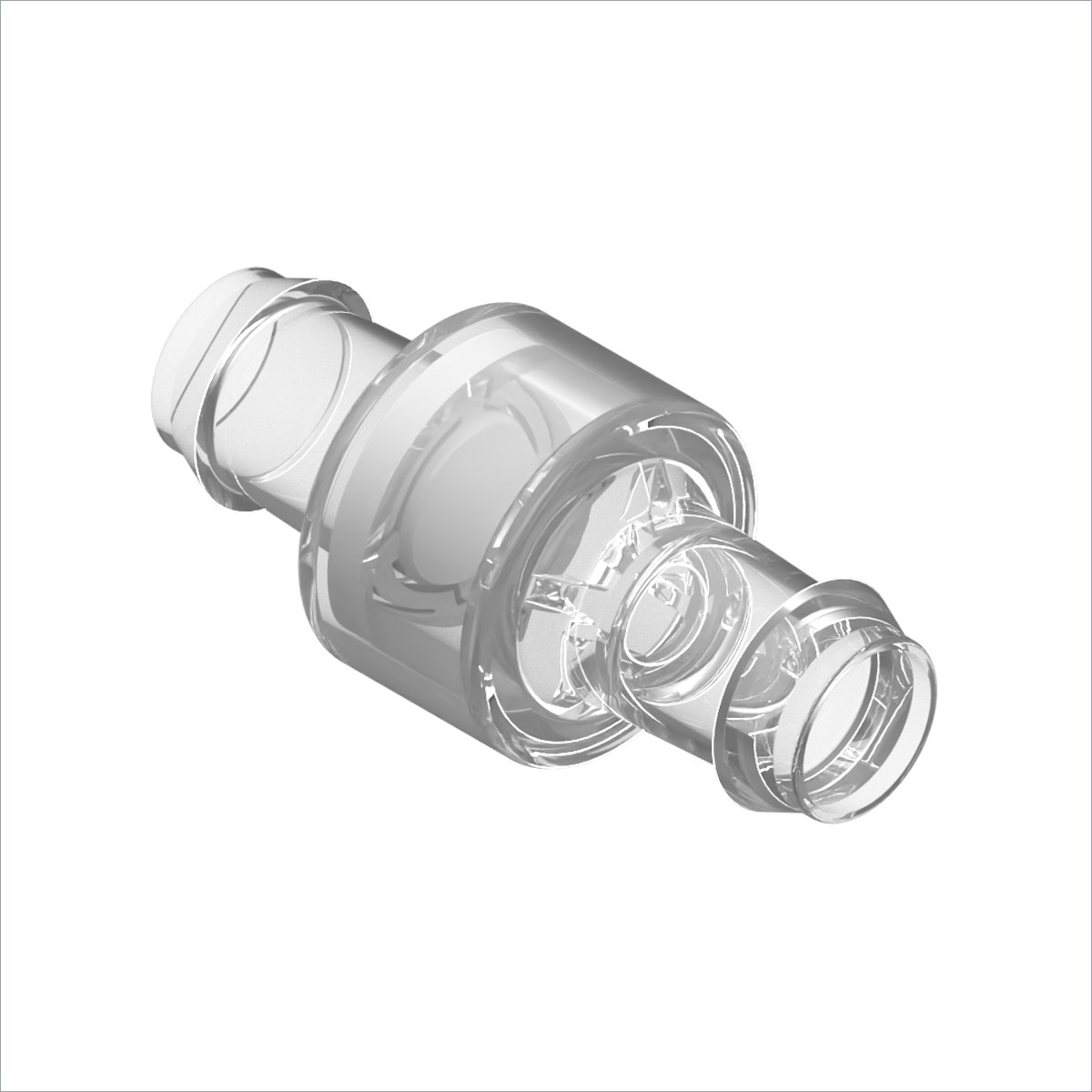

Acrylic High Flow Check Valve, Silicone Seal, 3/8" Barb

R-725

Acrylic High Flow Check Valve, Silicone Seal, 3/8" Barb

Delivery date will be confirmed after order is placed.
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information or expedited delivery.

R-725
$5.58
Price per piece
Sold in multiples of 1000

Description R-725

Product Information 100 PCS MINIMUM - 100 PCS/BAG

Mounting Style Inline

Connection 1 Inner: 0.300 inch (7.620 mm) / 3/8 inch or 0.425 inch (10.795 mm)

Non-Wetted Materials Medical Grade Acrylic

Wetted Materials Medical Grade Acrylic, Silicone

Flow Rate 2.2 (Air @ 20 psi) (cubic feet/min)

Operating Pressure 1.72" (std dev 0.20") (inch H20)

Item Weight 0.0002

REACH Compliant Yes

Maximum Backpressure 50 psi

Other Technical Data Cracking Pressure < 0.1 psi. All check valves have acrylic or polycarbonate housing and a silicone disc. All data derived from testing with air at room temperature. Pressure conversion 1 psi =27.68 in H2O =68.95 milli Bar =51.72 mm Hg. Flow conversion 1 cubic foot/min =28.32 liter/min. If you require any further information, please contact us.

Disclaimer: Free samples are available upon request. Please reference our Terms and Conditions for information regarding limitations on liability

Don't see what you're looking for? Contact us for custom options
